Model No: JCIT-A10丨12丨20丨25丨31.25
JCIT-A Series LED Film Display Screen Indoor Window Display
-High transparency
-Thin and soft
-Easy to install
-Energy-saving and low-consumption
-Clear display
-Unlimited creativity
-Thin and soft
-Easy to install
-Energy-saving and low-consumption
-Clear display
-Unlimited creativity
Pixel pitch :
Cabinet Size :
Quantity :
Subscribe to our Newsletter
LED Film Display Screen
LED film display screen is a new type of display technology, whose biggest characteristic is transparency. It is like a layer of film, in the light of the information displayed at the same time, will not completely obscure the scene behind.
LED film display screen is light and thin, has a certain degree of bendability, installation is extremely convenient, no steel frame structure, can be attached to a variety of objects such as glass and other surfaces.
LED film display screen consumes less energy and outputs a high-resolution screen that allows images and videos to be clearly presented, making it useful in many scenarios.
LED film display screen widely used in glass curtain wall, glass window, glass railing, transportation hub, enterprise exhibition hall, automatic doors and windows, indoor partition, hanging banner and other scenes.
LED Film Display Screen Features
(1) High Transparency
The light transmitance of LED film display screen is typicaly betwen 55% and 97%. This alows for effectve lighting and viewing range of glass and other lighting structures,whileensuring that the screen is almost invisible when closed and perfectly integrated with the surrounding environment.
(2) Thin and Portable
The thickness of the LED film display board is thin,generally about 1cm, light weight,almost no space afer instalation, smalload requirements onthe instalation came. and the led film display screen is easy to transport and install.
(3) Convenient Installation
LED film display screen has selfadhesive design, can be directly atached to glas and other planes, without complex steel frame structure, wiring is also easie, can be hidden naturall, greatlysaving installation time and cost.
(4) Strong Flexibility
LED film display screen is flexible, you can change the size and ayout to suit diferen instalation aras and shapes, and can be used inspecial instalation scenarioslike cuned glas. LED film display screen can also befolded in different ways, giving you more creative options.
Product Parameters
| Product | P4-8 | P6.5 | P5-10 | P10 | P12 | P16 | P20 | P25 | P31.25 | P40 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mode size | 960*256mm | 996*208mm | 960*320mm | 960*320mm | 960*192mm | 960*256mm | 960*320mm | 960*320mm | 960*320mm | 960*320mm | |
| LED type | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | |
| Brightness | 4000cd/m2 | 4500cd/m2 | 4500cd/m2 | 4500cd/m2 | 4500cd/m2 | 3000cd/m2 | 2500cd/m2 | 1800cd/m2 | 1000cd/m2 | 600cd/m2 | |
| Pixel Desity(pixel/m2) | 31250 | 23716 | 20000 | 10000 | 6889 | 3906 | 2500 | 1600 | 1024 | 625 | |
| Transparency | 65% | 55% | 82% | 82% | 85% | 88% | 90% | 90% | 92% | 95% | |
| Max Power | 800w/m2 | 800w/m2 | 700w/m2 | 700w/m2 | 700w/m2 | 300w/m2 | 280w/m2 | 280w/m2 | 280w/m2 | 280w/m2 | |
| Average Power | 300w/m2 | 300w/m2 | 280w/m2 | 260w/m2 | 260w/m2 | 120w/m2 | 120w/m2 | 120w/m2 | 120w/m2 | 120w/m2 | |
| Viewing Distance | 4m~100m | 6.5m~100m | 5m~100m | 10m~100m | 10m~100m | 16m~100m | 20m~100m | 20m~100m | 20m~100m | 20m~100m | |
| Light-emitting components | National Star | ||||||||||
| Control system | Calet, Moses, Nova synchronous/asynchronous | ||||||||||
| Input Voltage | AC100-240V(50-60HZ) | ||||||||||
| Proteection Level | IP61 | ||||||||||
| Color Temperature(K) | 6500~9500 | ||||||||||
| Refresh Rate | 3840Hz | ||||||||||
| Contrast | 2000:1 | ||||||||||
| Life span | ≥100,000 hours | ||||||||||
| View Angle | H:140° V:140° | ||||||||||
| Temperature-operating | -30°~ 65° | ||||||||||
| Humidity-operating | 10%~90%RH | ||||||||||
Where to Use LED Film Display Screen?
(1) Retail Store
LED Film display screen can be installed within the window to dynamically showcase product advertisements, promotional details, and more. This setup attracts customers' attention without obstructing the view of the merchandise inside the store, thereby increasing customers' purchasing intention.
(2) Commercial Square

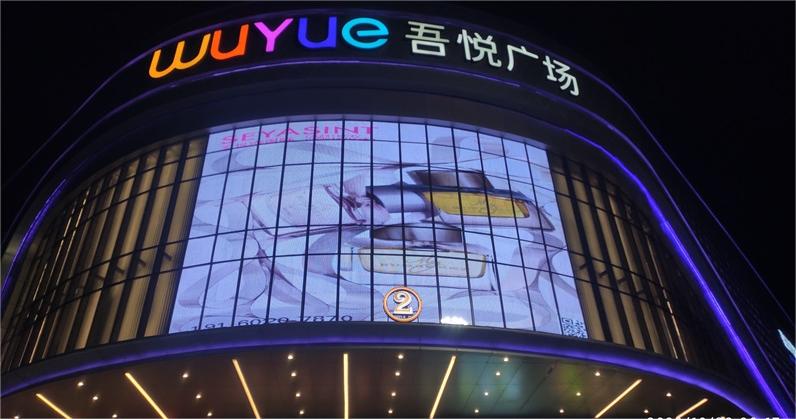

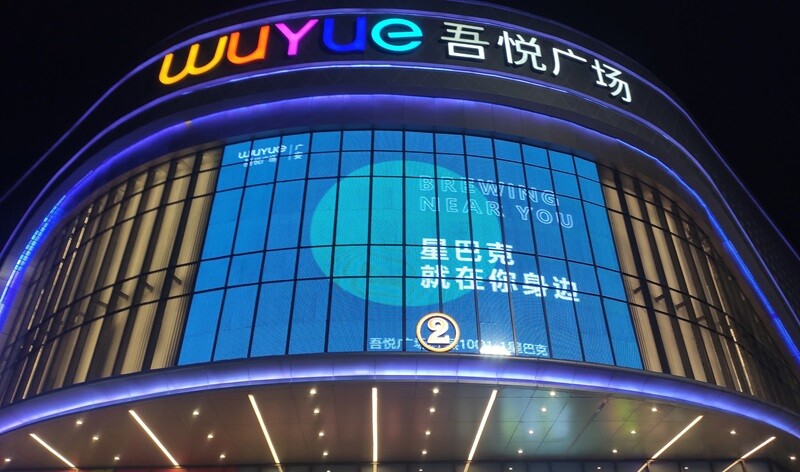

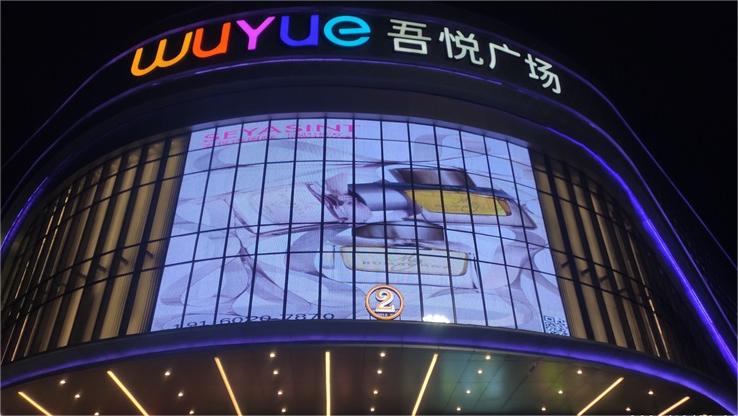

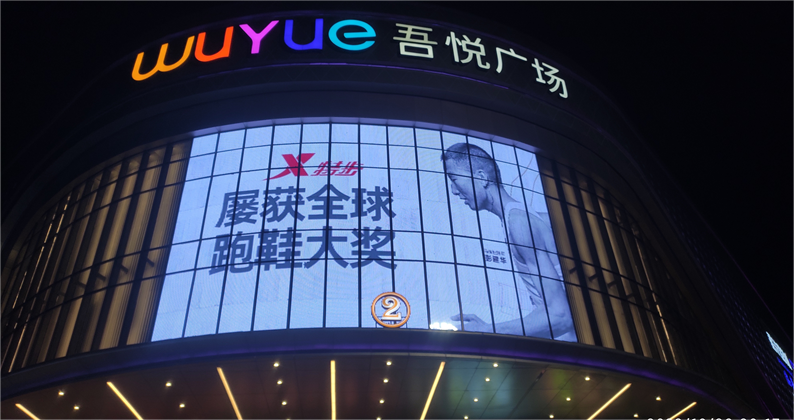

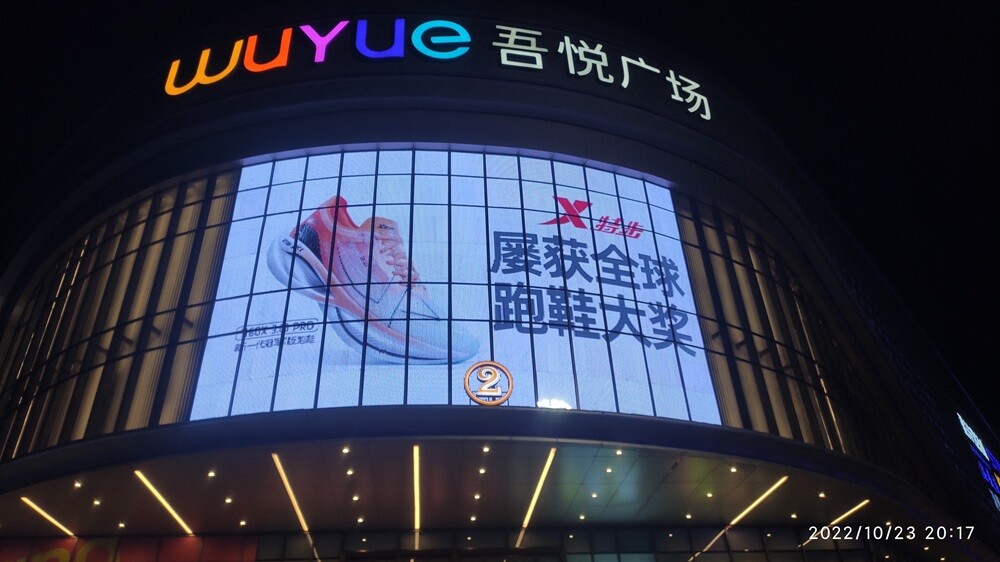

LED Film display screen is installed in key locations such as the entrance and lobby of shopping malls, or on the glass curtain wall of large shopping malls, to play advertising videos, brand promotion and other content to enhance the business atmosphere and advertising effectiveness.
(3) Exhibition Display and Museum
In museums, art galleries and similar venues, LED film display screen can be used to display a range of content, including pictures, videos and information about cultural relics and works of art. It allows the audience to access details about the exhibits, while also offering a more engaging experience through enhanced content on screen.
(4) Enterprise Building
The facade of the enterprise building is used to display the company logo, dynamic information and seasonal decorations, among other things. This helps to showcase the corporate image and culture.
(5) Theater
LED film display screen can be used to present stage background pictures, plot related videos, etc., to enhance the visual effect of the stage and bring more shocking audiovisual experience to the audience.
(6）Hotel and Restaurant
LED film display screen is used to create a unique atmosphere and visual effects, such as displaying food images, menus and other information in the restaurant, and showcasing the hotel's service facilities and local tourism information in the hotel lobby. This enhances the customer experience.
Application Scenarios
